Configuration Guide

This page is for curators and deployers: people who shape how a deployed AE RDF looks — which types are visible, how value objects render, how the endpoint behaves — and then export that as a locked configuration for end users. For day-to-day browsing, see the User Guide.

Authoring mode

Everything on this page happens in Config authoring mode — a toggle in Settings, off by default. Turning it on reveals the per-type gears in the Types sidebar and the export buttons; the configured effects (embed/hide/pin) apply either way. The gear and Export stay available even when running a deployed config, so you can tweak and re-export.

The Endpoint Manager

In the standalone / authoring build you assemble the endpoint list by hand. Open the manager from the endpoint badge in the header, then Manage endpoints…. From here you can add, edit, test, select, and remove endpoints. (A deployed instance has no manager: its list is fixed by config/app.json, and a custom URL you type there lasts only for the current session. See Exporting a deployment config.)

• Suggested endpoints: curated public endpoints appear as one-click entries. Click one to add and connect to it immediately.
• Add endpoint: opens a small form for a custom endpoint (below).
• Each saved endpoint shows a status dot (green = currently selected) and edit / delete actions. Delete asks for a quick confirm.

Selecting an endpoint connects to it and loads its type inventory. The edit form also has a Graph behaviour section, covered in Graph behaviour below.

Adding a custom endpoint

The form needs just two things:

Field	Notes
Name	A label for your own reference.
SPARQL endpoint URL	The full query URL, e.g. https://example.org/sparql.

A warning appears if the URL is plain http:// (your queries could be intercepted): fine for localhost, risky for public endpoints.

Authentication

If the endpoint is protected, choose an Authentication type:

Type	Fields
None	(default)
Basic	Username + password
API key	Header name + key
Bearer token	Token

Credentials are never saved: leave them blank and AE RDF asks for them when it connects, holding them in memory for that session only. They're sent only to the endpoint, with each query. The endpoint file stores only the auth type (see Endpoint configuration file).

Test before saving

Click Test to run a tiny SELECT … LIMIT 1 against the endpoint. You'll get a green success (with response time) or a clear error, most often a CORS or authentication problem. Then Save.

Per-type configuration

Turn on Config authoring mode in Settings to reveal a per-type gear in the Types sidebar:

• Pin to the top, or Hide (hidden types move into the Hidden group, where you can unhide them).
• Render as object — how it shows when it's a value of another resource: Link (default), Embed (inline its properties — for value objects like amounts, addresses, coordinates), or Label only.
• Group — assign to an existing group, create a new one, or remove.

Without authoring mode the sidebar is read-only, but the configured effects still apply.

System groups and sidebar icons

Types are collected into three built-in groups at the bottom of the Types sidebar by their render strategy, each with its own icon:

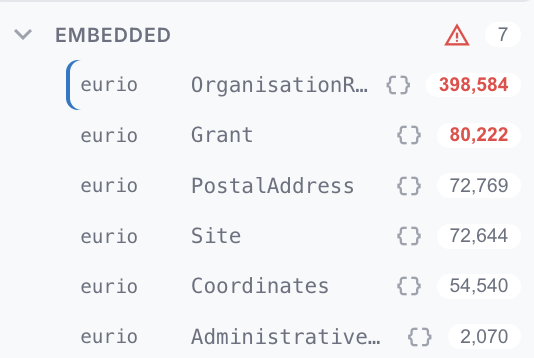

Embedded ({} icon) Types with render: embed: their properties are inlined under the resources that reference them. Expanded by default.

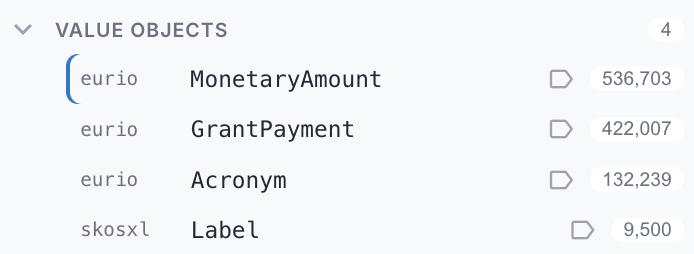

Value objects (tag icon) Types with render: label: shown as a single composed identity (e.g. a MonetaryAmount as 337472.95 · EUR) rather than a browsable page. Collapsed by default.

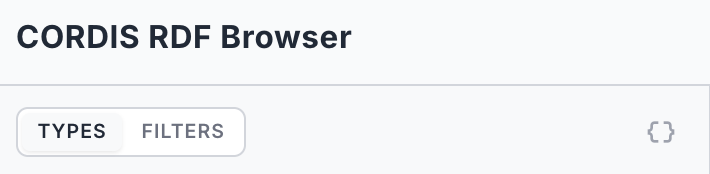

The third group, Hidden, collects hidden and blank-node types (collapsed by default). The Types header has a {} toggle that also nests embedded types under their composing class; either way they stay listed in the Embedded group.

A warning icon on the Embedded group, with a red count on a member, flags orphaned embedded instances: instances with no owner to inline them under (see Embedding safely), so they only ever appear in the group. Hover the count for the exact number; a high-cardinality entity with a large red orphan count usually should not be set to embed.

Type config reference

Everything the gear (and the resource-view edit tools) author lands in the endpoint's types map, keyed by type IRI:

Field	Meaning
render	How an instance shows as a value: link (default), embed (inline its properties), label (identity only, no navigation — for shared value objects like unit vocabularies).
embedVia	For render: embed — only inline the object where it's reached via this predicate (its owning relationship). ^predicate inverts it (embed the referrer).
sidebar	show / hide / pin.
group	Sidebar group label — types with the same label collect under one collapsible header.
order	Predicate IRIs in display order for this type's resource view.
hide	Predicate IRIs hidden from the resource view.
label / labelFull	Predicates composing the display label; labelFull keeps all parts in the heading.
search	Predicates the instance-list filter matches (overrides the default label fields).
facets	Faceted-browsing filters for the instance list — one entry per faceted property (value or range). Config-file-authored only.
listColumns	Extra columns in this type's instance list — one entry per column (predicate, optional label, optional via path). Turns the plain list into a small table. Config-file-authored only.
foldAfter, groupByType, boolean, number, columns, capWidth, viaLabels	Per-field display formatting, all authored via the gear/edit tools.

Embedding safely

render: embed inlines an object's properties recursively — use it for low-cardinality value objects (amounts, addresses, coordinates, time instants, geometries). Two rules keep it safe:

• Never blanket-embed a high-cardinality type. A resource pointing at hundreds of embedded objects inlines them all; the loader caps depth and total, but the page becomes a wall. Check the worst-case copies under a single parent (the profiler records this as embed.selfMax in typeProperties) — single digits is fine, hundreds is not.
• Scope with embedVia. Many value objects are also the range of a high-fan-out predicate (a "defined term" list, a shared unit). Pinning the owning predicate means the object only inlines under its owner, and everywhere else stays a link. For genuinely shared vocabulary terms, prefer render: label over embed.

Facets

A type can expose faceted filters in the sidebar's Filters tab (next to Types): click values to narrow the instance list without typing. Facets are config-file-authored — there's no gear for them in v1. Add a facets array to the type's config, one entry per faceted property:

• Value facet (no ranges) — lists that property's distinct values, most common first, each with a count. Clicking values narrows the list; multi-select within one facet is OR, and selecting across several facets is AND. limit caps how many values are listed (default 15; a "top N shown" note appears when there are more). URI values are shown with their resolved label; literals as-is.
• Range facet (ranges set) — buckets a numeric property into the bands you define (min ≤ value < max; either bound may be omitted for an open-ended band). Each band shows a count. By default the value is compared numerically (a decimal cast, so a number stored as a string still sorts right). Set datatype: "date" to treat each band's min/max as a year and compare the value as an xsd:date (≥ "min-01-01", < "max-01-01") — a year/date range facet.
• Two-hop value (via set) — when the faceted value lives one node away (a wrapper node, not a direct literal), give the second-hop predicate in via: the facet then matches ?s <predicate> ?node . ?node <via> ?value and facets on ?value. Works for both value and range facets. Example: CORDIS hasTotalCost points at a MonetaryAmount node whose number is under value, so predicate: hasTotalCost, via: value ranges over the actual cost.

A facet's own counts are computed with the other facets' selections applied but not its own — so an unselected value always shows what adding it would yield (classic faceted search). The instance list and its total reflect all selections. A Clear filters link resets them. Selections are saved in the URL (?filters=), so a filtered list is bookmarkable and shareable.

{
  "types": {
    "http://data.europa.eu/s66#Grant": {
      "facets": [
        {
          "predicate": "http://data.europa.eu/s66#status",
          "label": "Status",
          "limit": 10
        },
        {
          "predicate": "http://data.europa.eu/s66#totalCost",
          "label": "Total cost",
          "ranges": [
            { "label": "< €100k", "max": 100000 },
            { "label": "€100k – €1M", "min": 100000, "max": 1000000 },
            { "label": "≥ €1M", "min": 1000000 }
          ]
        }
      ]
    }
  }
}

Instance-list columns

By default the instance list shows each row's name (label) and URI. Give a type a listColumns array and the list becomes a small table: the name plus one column per entry, each showing that property's value for the row. It's the same via path mechanism as facets, so a column can reach a value one or more hops away (a wrapper node like hasTotalCost → value, or an acronym node's shortForm).

Each column: predicate (the property, first hop when via is set), optional label (heading; defaults to the humanized predicate name), optional via (a single predicate or an ordered path array). One value per cell (sampled — meant for near-functional properties like status, dates, amounts); URI values render as a qname, literals as-is. Cells fill in just after the rows appear.

Users can switch a columned list between a table and a card layout from the list header (cards by default). Columns inherit down the subclass hierarchy: a type with no listColumns of its own uses the nearest ancestor's (via the subclasses map), so you configure a superclass (e.g. Result) once and its subclasses (JournalPaper, ProjectPublication, …) get the same columns unless they set their own.

{
  "types": {
    "http://data.europa.eu/s66#Project": {
      "listColumns": [
        { "predicate": "http://data.europa.eu/s66#hasAcronym", "via": "http://data.europa.eu/s66#shortForm", "label": "Acronym" },
        { "predicate": "http://data.europa.eu/s66#projectStatus", "label": "Status" },
        { "predicate": "http://data.europa.eu/s66#startDate", "label": "Start" },
        { "predicate": "http://data.europa.eu/s66#hasTotalCost", "via": "http://data.europa.eu/s66#value", "label": "Total cost" }
      ]
    }
  }
}

Endpoint configuration file

A deployed endpoint (config/endpoints/<slug>.json, or embedded in app.json) carries, besides name and url:

Field	Meaning
auth	Authentication type (basic / apikey / bearer). Credentials are never stored — users are prompted on connect.
graph	Graph behaviour: quads and defaultView (own / merged).
infer	GraphDB only: send infer=<value> with every query (false disables inferred triples).
types	The per-type config map (above).
prefixes	Endpoint-declared prefix → namespace map, loaded at highest precedence while this endpoint is active — keeps exotic-vocab qnames readable without bloating the global app.json prefixes.
resourceNamespaces	URI prefixes whose resources this endpoint serves (its data hosts, e.g. https://energy.ld.admin.ch/ for LINDAS, http://data.europa.eu/s66/ for CORDIS). Drives URL auto-switch: entering/opening a resource URI under one of these switches the active endpoint to this one and loads the resource there. Distinct from prefixes, which only shapes qname display for vocabularies.
extraLabelPredicates	Extra label predicates appended at lowest precedence (e.g. foaf:name / schema:name for endpoints that label agents only via those).
typeInventory, typeProperties, subclasses, composition, orphanCounts, deprecatedPredicates, profiledAt	Cached profiler output for an instant sidebar and informed embedding — generated, not hand-written (see the script below).

app.json reference

The manifest at config/app.json:

Field	Meaning
appName, logoUrl, documentationUrl	Branding: header name, logo, and docs link.
endpoints	The endpoint list — inline objects and/or "<slug>" strings referencing config/endpoints/<slug>.json.
prefixes	Global prefix → namespace map (shared across endpoints).
doi	Per-field toggles for the DOI citation card: authors, year, title, container, publisher, type, categories, abstract, copyright, url (omitted = shown; false hides) and abstractMaxChars (truncation length, default 280).

Generating groups, embeds & prefixes (group-types.mjs)

Hand-assigning groups to hundreds of classes doesn't scale. ae-rdf/scripts/group-types.mjs writes them into a profiled endpoint config:

node scripts/group-types.mjs public/config/endpoints/<slug>.json [flags]

Flag	Effect
(none)	Mechanical clustering: well-known vocabularies get canonical group names; everything else groups by dataset (host + path), oversized groups split a path segment deeper, tiny groups fold into their dominant linker.
--smart	Sends the inventory (class URIs, counts, property-range links) to Claude (claude -p) for thematic clustering — classes group by what they mean and link to, not just their namespace. The mechanical pass remains the fallback for anything uncovered.
--embed	Marks a curated list of well-known value objects (schema:PostalAddress, time:Instant, geo:Geometry, …) render: embed, gated by the profiler's selfMax so a fan-out type is refused loudly.
--prefixes	Generates the endpoint's prefixes map (conventional prefixes for known vocabularies, sensible guesses for the rest).
--dry-run	Report only, write nothing.
--force	Overwrite existing group / render / prefixes values (default: hand-authored values win).

It requires a profiled config (typeInventory + typeProperties); run the profiler first (scripts/profile-endpoint.ts).

Graph behaviour

With Config authoring mode on, the endpoint edit form gains a Graph behaviour section: whether the endpoint uses named graphs (quads) and what its default (no-GRAPH) view is — Own triples or a Merged view of the quads. Leave both Auto unless you know the endpoint; see Graphs. It's saved with the endpoint and exported in app.json.

Exporting a deployment config

With authoring mode on, two export buttons appear under Deployment:

• Export app.json — the manifest: app name, prefix mappings (so qnames render offline, without prefix.cc), and the endpoint list. Each endpoint carries its graph behaviour, per-type config (sidebar visibility, embed/link/label, order), and a cached snapshot of the type inventory (for an instant Types sidebar on deploy).
• Export <endpoint> — the currently selected endpoint as its own file.

To deploy: drop the manifest at config/app.json. Endpoints can be embedded in the manifest, or split into config/endpoints/<slug>.json files referenced from the manifest by slug — export each with the per-endpoint button and add its slug to the manifest's endpoints list. Tweak everything live, export, deploy, and end users get a pre-configured, locked AE RDF. Credentials are never included in any export.
